CNC ROTARY TABLE
HMT

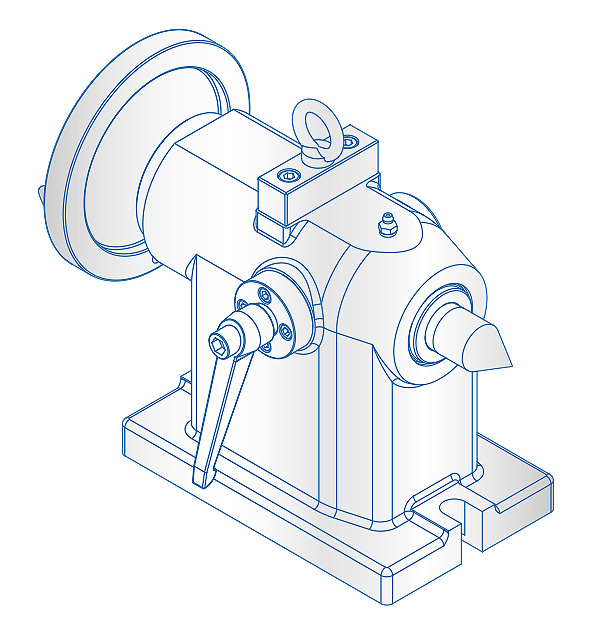

Manual Tailstock
Standard Accessories: Clamping Bolts , Position Key

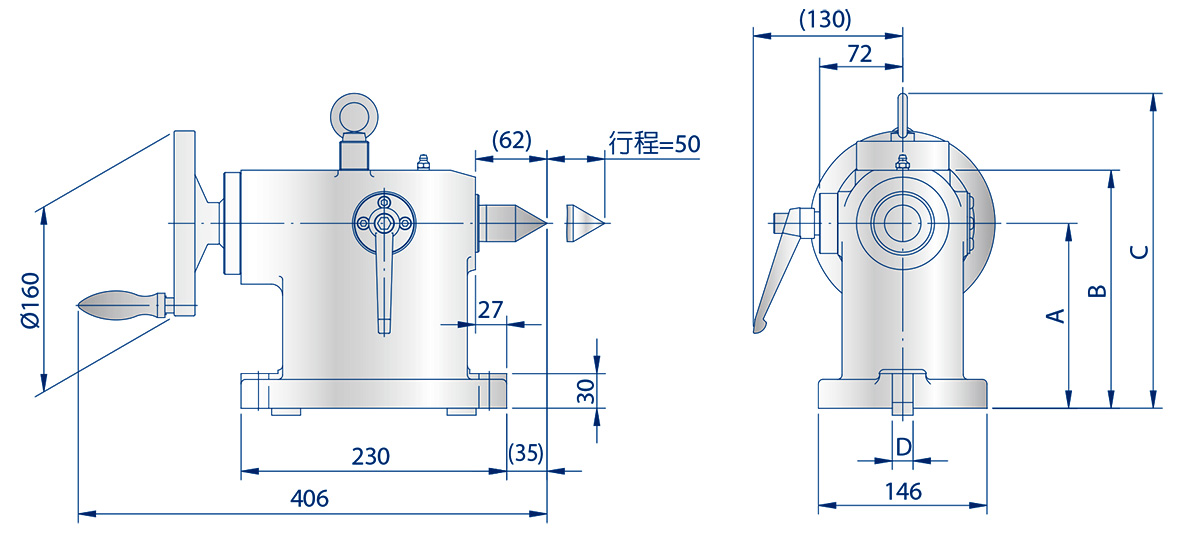

Dimensional Drawing
Specifications
| Model / Size | A | B | C | D | |
|---|---|---|---|---|---|
| HMT-135C | 110 | 156 | 223 | 14 | |
| HMT-160C | 135 | 181 | 248 | 14 | |
| HMT-200C | 160 | 206 | 273 | 18 | |
| HMT-250C | 160 | 206 | 273 | 18 | |
| HMT-320C | 210 | 206 | 273 | 18 | |
Specifications
| Model / Size | A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|---|
| AR-135 | 45 | 35 | Ø13 | 65 | 12 | 20 | 12 | 20 | |
| AR-160 | 48 | 40 | Ø17 | 80 | 12 | 25 | 12 | 22 | |
| AR-200 | 48 | 40 | Ø17 | 80 | 12 | 25 | 12 | 22 | |
| AR-250 | 48 | 40 | Ø17 | 80 | 12 | 25 | 12 | 22 | |
| AR-320 | 48 | 40 | Ø17 | 90 | 15 | 30 | 12 | 25 | |
