TOOL MAGAZINE

Vertical Series

HYD-320 HYD-324 HYD-416 HYD-420 HYD-424 HYD-430

CYLINDRICAL CAM ASSURES / HIGH INDEXING ACCURACY

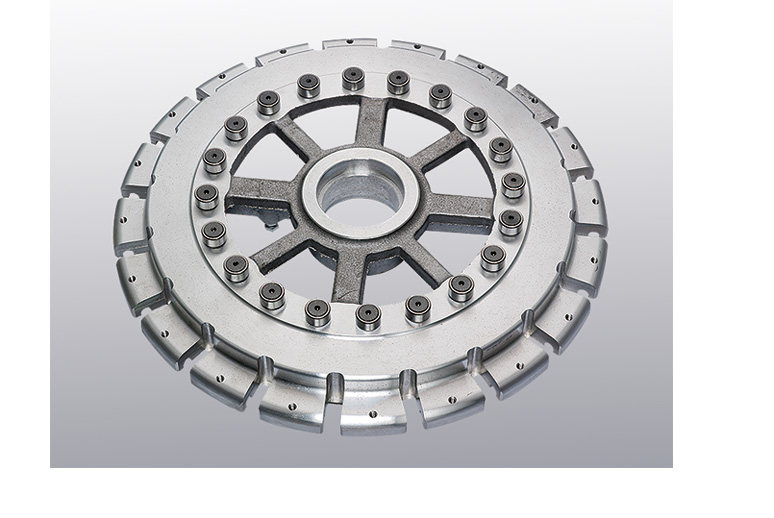

The indexing mechanism of the tool magazine is a cylindrical cam, featuring accurate positioning, high reliability and easy to maintenance.
The low inertial, low noise and light-weighted tool arm is suitable for rapid tool changing.

Specifications

Model HYD-320 HYD-324 HYD-416
Specification 20T (#30) 24T (#30) 16T (#40)
Max. Tool Dia. w/adjcent tool 67 mm 67 mm 78 mm
Max. Tool Dia. 102 mm 102 mm 135 mm
Max. Tool Weight 4 kg 4 kg 8 kg
Max. Tool Length 200 mm 200 mm 300 mm
T - T Time 0.8 Sec. (60 Hz) 0.8 Sec. (60 Hz) 1.31 Sec. (60 Hz)
Weight 180 kg 200 kg 180 kg
Driving System Electric motor Electric motor Electric motor
Tool Arm Length 390 mm 390 mm 480 mm
Orientation Angle 90 90 75
Model HYD-420 HYD-424 HYD-430
Specification 20T (#40) 24T (#40) 16T (#40)
Max. Tool Dia. w/adjcent tool 95 mm 78 mm 78 mm
Max. Tool Dia. 135 mm 135 mm 135 mm
Max. Tool Weight 8 kg 8 kg 8 kg
Max. Tool Length 300 mm 300 mm 300 mm
T - T Time 1.31 Sec. (60 Hz) 1.31 Sec. (60 Hz) 1.31 Sec. (60 Hz)
Weight 280 kg 280 kg 365 kg
Driving System Electric motor Electric motor Electric motor
Tool Arm Length 530 mm 530 mm 480 mm
Orientation Angle 65 65 75

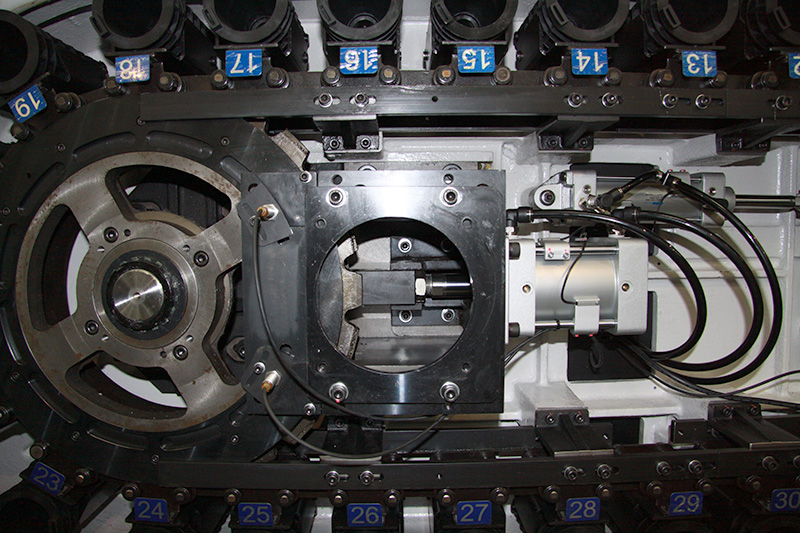

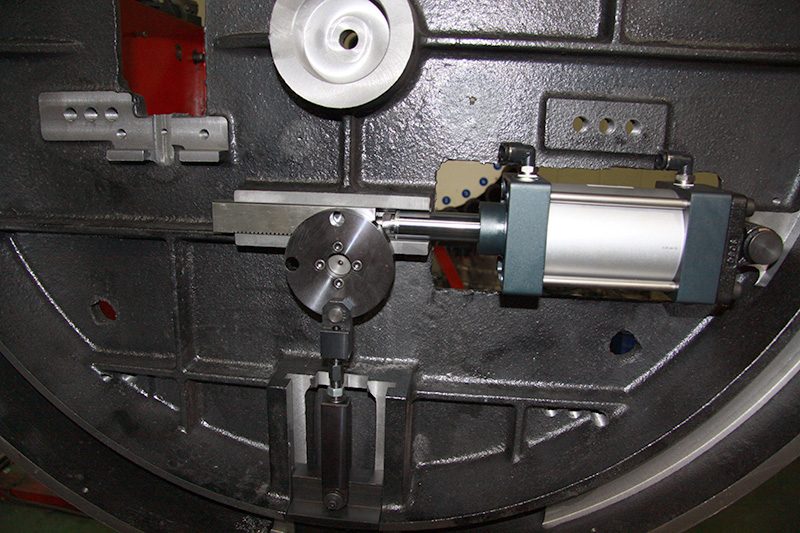

The tool pocket positioning fixing device helps to increase srability and accuracy in tool change.

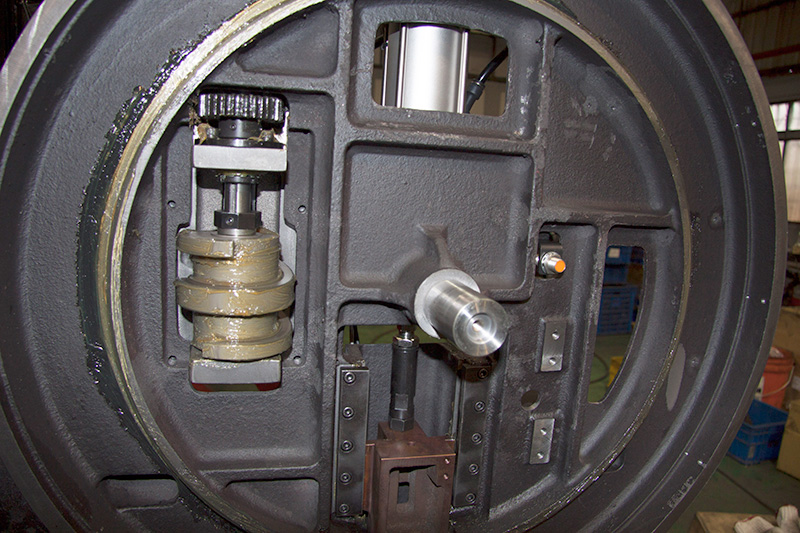

The cam type locking device makes tool pocket position accurate and fast.

The specially designed dust and chip protection for all sensing parts ensures error-free sensing.

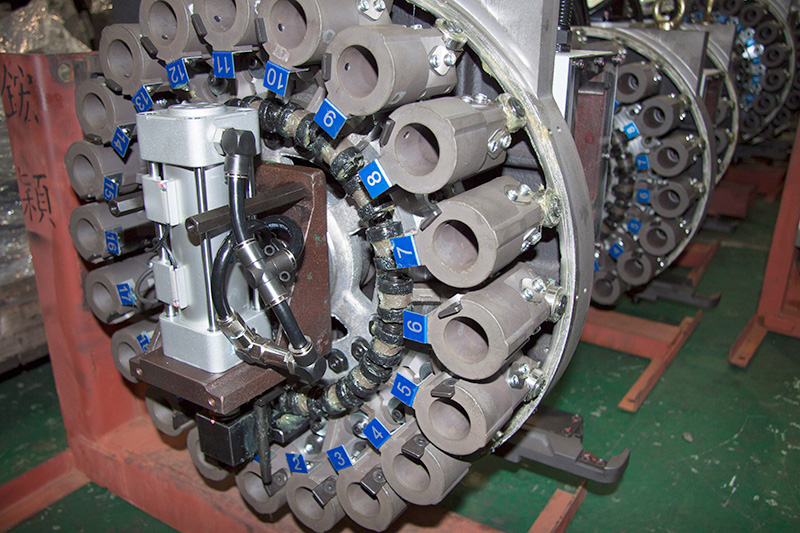

BT30 tool pockets are manufactured from aluminum alloy.

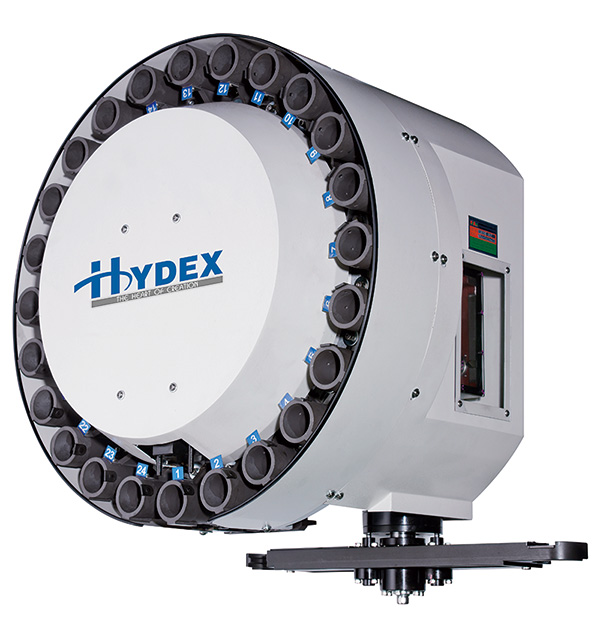

Vertical type tool magazine.

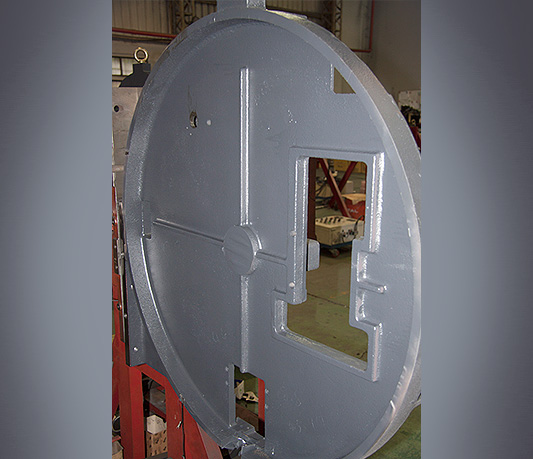

One-piece fabricated magazine body.。
