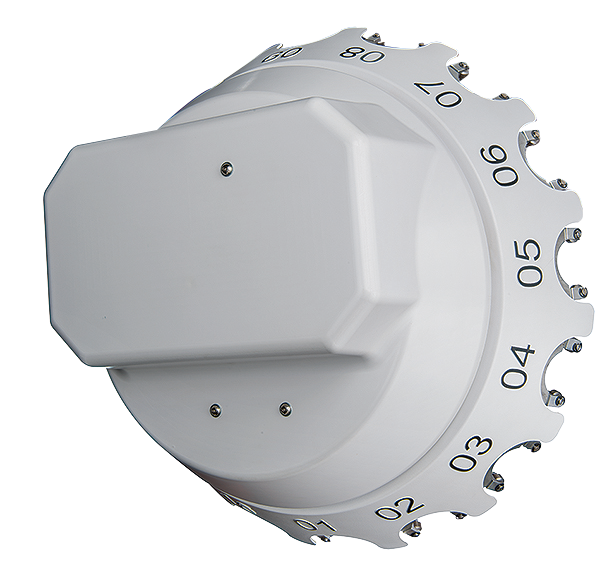

Vertical Series




Model HYT-316
Max. tools 16T
Max. tool dia. 80 mm
Max. tool length 250 mm
Max. tool weight 3 kg
Total tool weight 48 kgf
Max. unbalance lood 12 kgf
Weight 50 kg
Mag. indexing time 0.4 sec (60Hz) / 0.55 sec (50Hz)
Driving System Electric motor

The tool pocket positioning fixing device helps to increase srability and accuracy in tool change.

The cam type locking device makes tool pocket position accurate and fast.

The specially designed dust and chip protection for all sensing parts ensures error-free sensing.

BT30 tool pockets are manufactured from aluminum alloy.

Vertical type tool magazine.

One-piece fabricated magazine body.。
