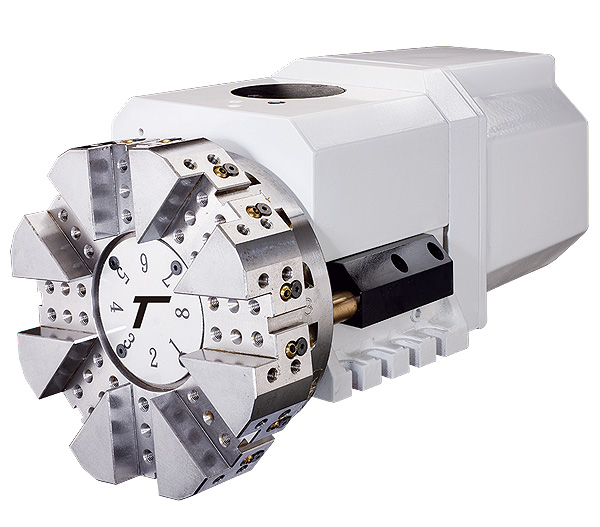

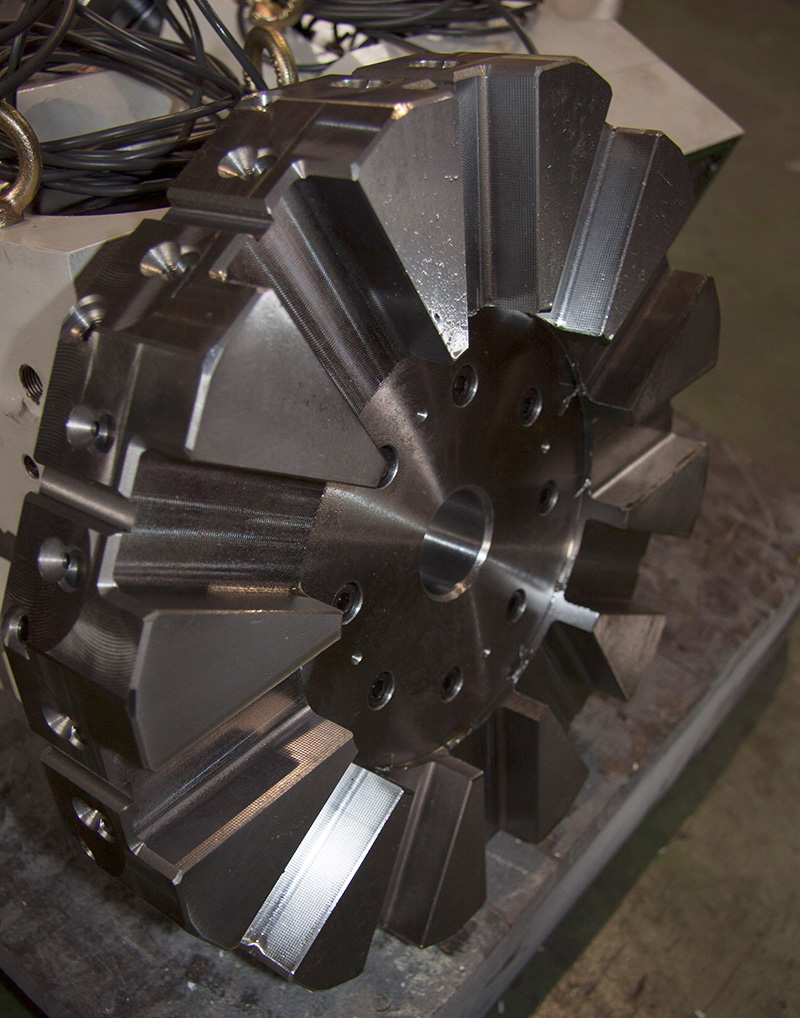

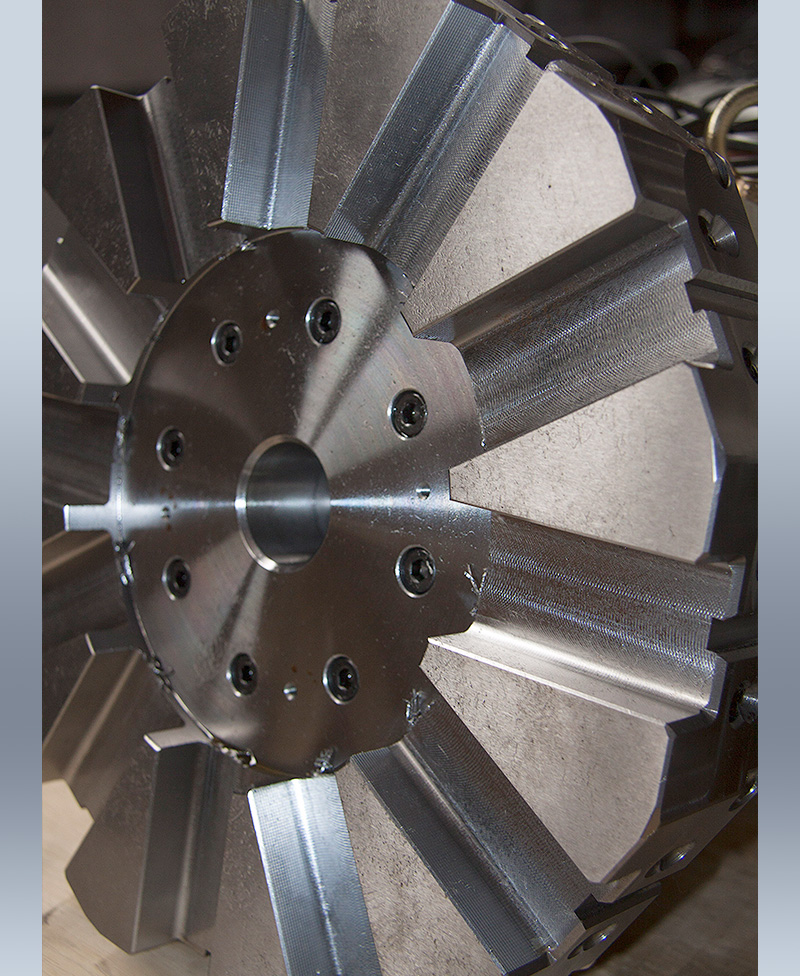

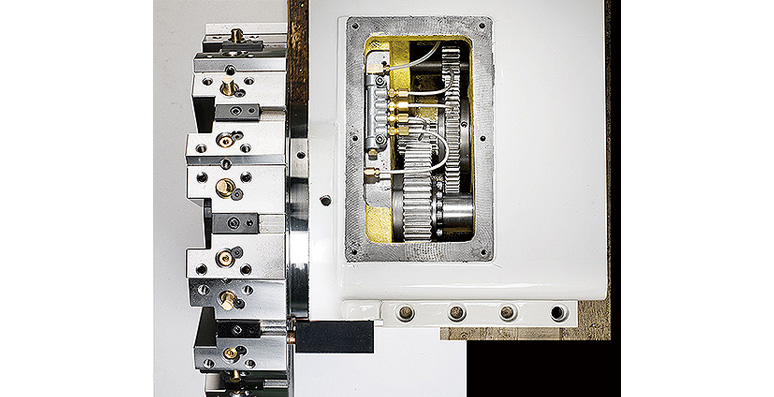

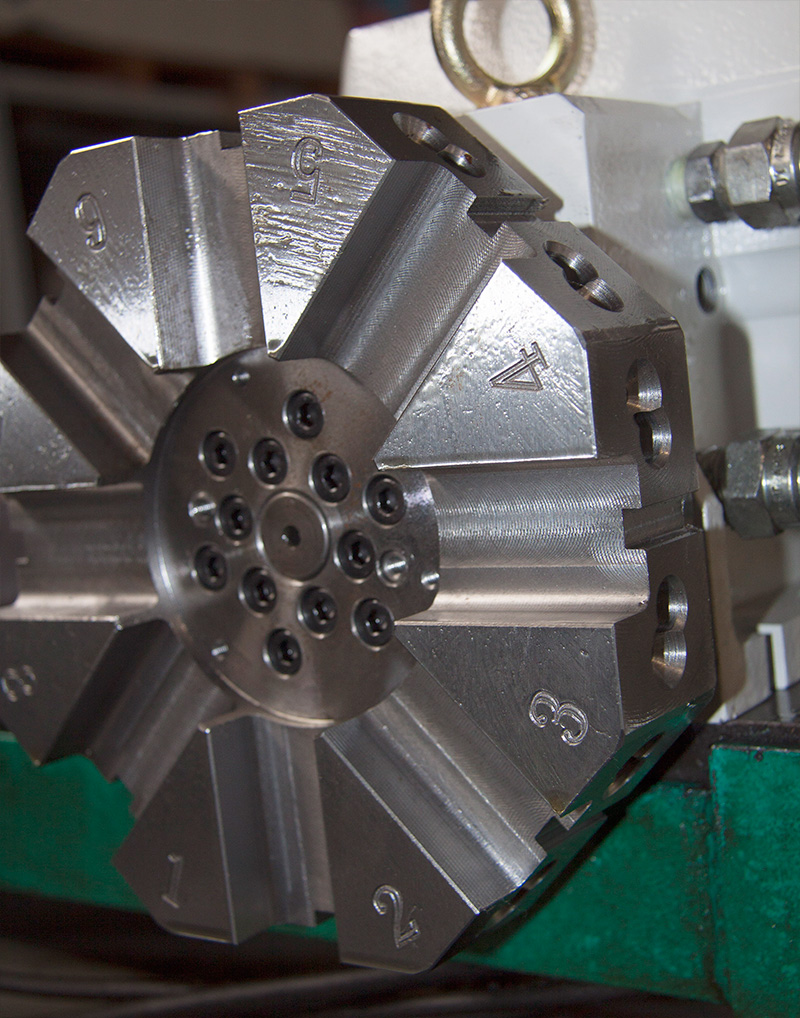

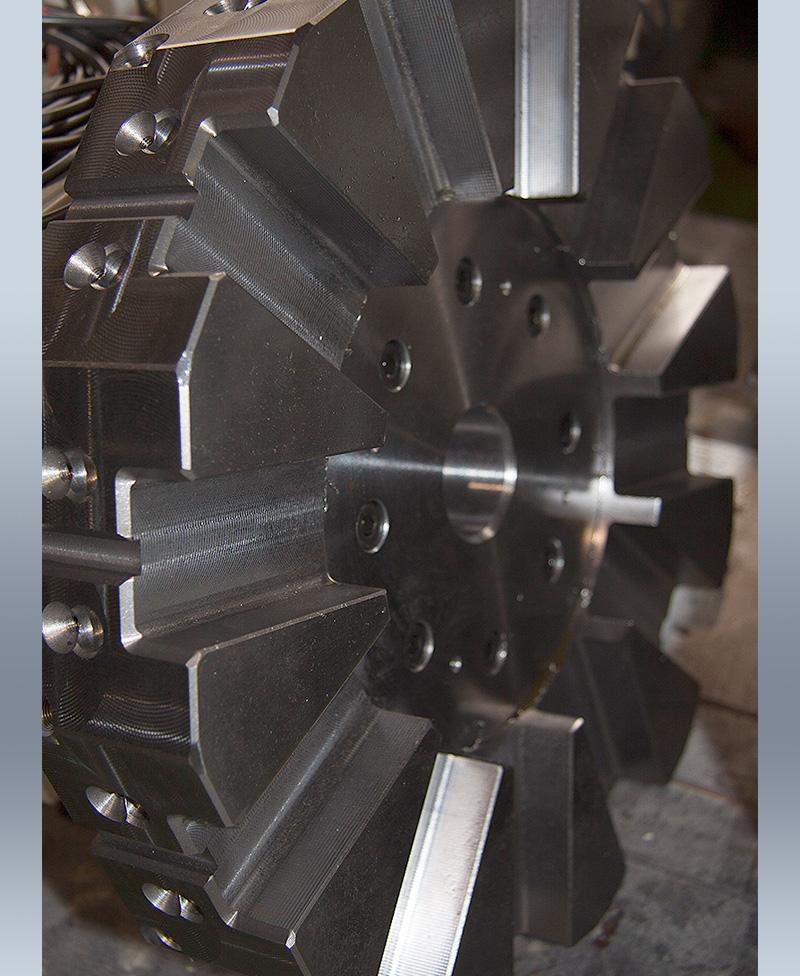

Model | HY-63A | |
Center height | mm | 63 mm |
Number of tools | N | 6T / 8T N |
Gear speed ratio | 48:1 | |
Input speed / Output speed | rpm | 3000 / 69 rpm |
Indexing time (tool-tool) | sec | 0.2 / 0.1 sec |
Indexing time (including locking) | sec | 0.4 / 0.3 sec |
Total indexing time for 180˚ | sec | 0.4 sec |
Total indexing time for 180˚ (including locking) |
sec | 0.5 sec |
Indexing a cycle time (unlocking cycle locking) |
sec | 1.1 sec |
Curvic couplings type | Piece | 2 Piece type |
Servo motor type | HC-UFS43K | |
Solenoid operated valve | AC 110, DC 24V | |
Proximity switch | X2 F1 | |
Hydraulic working pressure | kgf/cm² | (25 ~ 30) 30 kgf/cm² |
Thrusting force of hyd. cyl. | kgf | 1060 kgf |
Accuracy of repeatability | mm | 0.003 mm |
N.W. (without tool disc) | kg | 52 kg |
※ Specifications, dimensions, appearance and color are subject to change without prior notice.
