| Model | HYHC-(40#) |
| Max. tool dia. (w/adjacent tool) | Ø75 |
|---|---|
| Max. tool dia. (no adjacent tool) | Ø 125 |
| Max. tool length | 300 mm |
| Max. tool weight | 8 kg |
| Tool loading capacity | 32T / 40T / 60T |
| Tool specifications | BT40 / CAT40 / DIN40 |
| Magazine rotation power | Servo motor |
| Tool arm power | Hydraulic |
The tool arm is equipped with corrosion-resistant and dust-proof device, making tool change accurate.
The air blast device for tool pocket makes tool pocket clean and chip-free, which improves stability in tool change.
The positioning lead screw is equipped with a safety guard for operational safety.
The positioning lead screw is equipped with a safety guard for operational safety.
The earlier unlocking device contributes to upgrade tool change performance.
Servo drive provides quick transmission and high positioning accuracy.

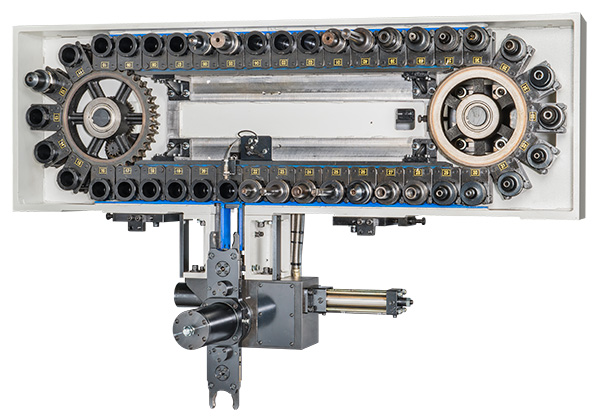

Horizontal tool magazine.
Horizontal tool magazine.
