TOOL MAGAZINE
Vertical Series
HYU-308 HYU-312 HYU-412 HYU-416 HYU-420

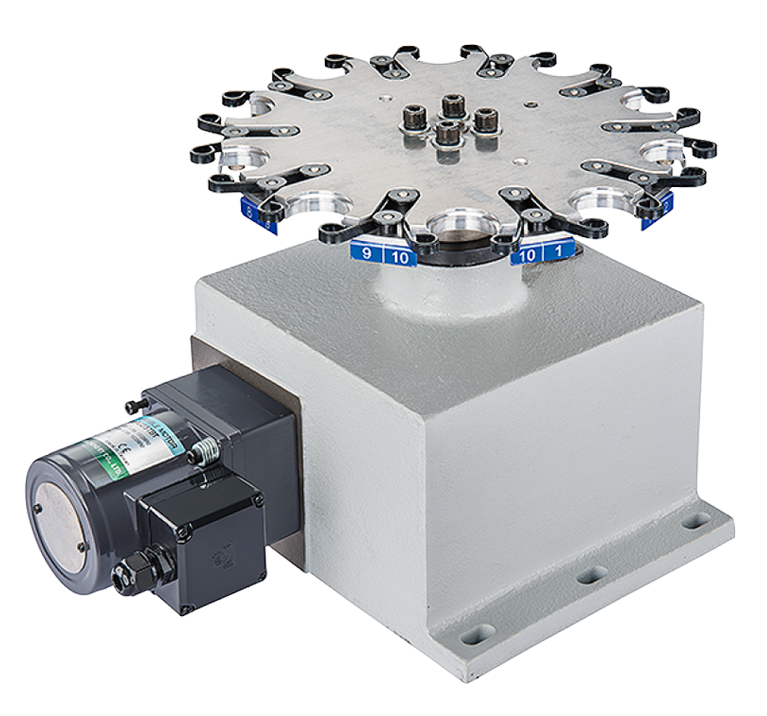

MAGAZINE FOR DOUBLE COLUMN MACHINING CENTER AND ENGRAVING MACHINE
HIGH SPEED , HIGH POSITIONING ACCURACY, UNMATCHED PERFORMANCE
Compactly constructed for saving installation space. Extra smooth motions.
Employ cylindrical cam indexing mechanism to achieve high positioning accuracy and maximum stability.
By using imported proximity sensor, sensitive response and outstanding control stability are assured.
The proximity sensor is enclosed to prevent chips and foreign object from interference.
Specifications
| Model | HYU-308 | HYU-312 | HYU-412 |
| Specification | 8T (#30) | 12T (#30) | 12T (#40) |
| Max. Tool Dia. w/adjcent tool | 50 mm | 63.5 mm | 103.5 mm |
| Max. Tool Dia. | 120 mm | 120 mm | 160 mm |
| Max. Tool Weight | 3 kg | 3 kg | 6 kg |
| Max. Tool Length | 114.3 mm | 114.3 mm | 175 mm |
| Mag. indexing time | 1.67 / 50Hz 1.35 / 60Hz |
1.67 / 50Hz 1.35 / 60Hz |
1.67 / 50Hz 1.35 / 60Hz |
| Weight | 35 kg | 35 kg | 45 k |
| Driving System | Electric motor | Electric motor | Electric motor |
Specifications
| Model | HYU-416 | HYU-420 |
| Specification | 16T (#40) | 20T (#40) |
| Max. Tool Dia. w/adjcent tool | 104 mm | 104 mm |
| Max. Tool Dia. | 160 mm | 160 mm |
| Max. Tool Weight | 6 kg | 6 kg |
| Max. Tool Length | 250 mm | 250 mm |
| Mag. indexing time | 1.67 / 50Hz 1.35 / 60Hz |
1.67 / 50Hz 1.35 / 60Hz |
| Weight | 50 kg | 80 kg |
| Driving System | Electric motor | Electric motor |
