TOOL MAGAZINE

Vertical Series

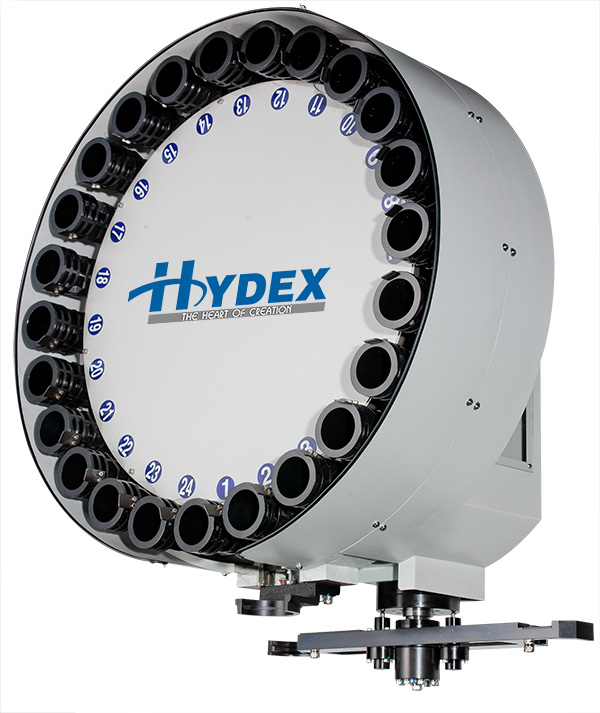

HYD-520 HYD-524

CYLINDRICAL CAM ASSURES / HIGH INDEXING ACCURACY

The indexing mechanism of the tool magazine is a cylindrical cam, featuring accurate positioning, high reliability and easy to maintenance.

Specifications

Model HYD-520 HYD-524
Specification 20T (#50) 24T (#50)
Max. Tool Dia. w/adjcent tool 135 mm 110 mm
Max. Tool Dia. 270 mm 220 mm
Max. Tool Weight 20 kg 20 kg
Max. Tool Length 350 mm 350 mm
T - T Time 2.5 Sec. (60 Hz) 2.5 Sec. (60 Hz)
Weight 560 kg 560 kg
Driving System Electric motor Electric motor
Tool Arm Length 600 mm 600 mm
Orientation Angle 60 60

The tool pocket positioning fixing device helps to increase srability and accuracy in tool change.

The cam type locking device makes tool pocket position accurate and fast.

The specially designed dust and chip protection for all sensing parts ensures error-free sensing.

BT30 tool pockets are manufactured from aluminum alloy.

Vertical type tool magazine.

One-piece fabricated magazine body.。
