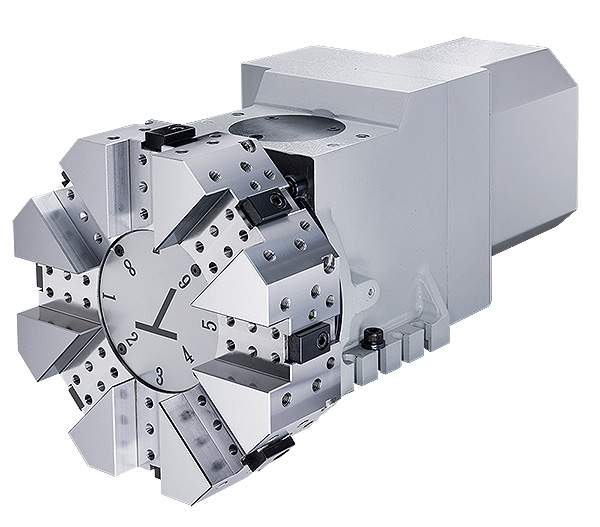

Model | HY-80A | |
Center height | mm | 80 mm |
Number of tools | N | 8T / 10T / 12T N |
Gear speed ratio | 24:1 | |
Input speed / Output speed | rpm | 750 / 31.25 rpm |
Indexing time (tool-tool) | sec | 0.25 / 0.2 sec |
Indexing time (including locking) | sec | 0.35 / 0.3 sec |
Total indexing time for 180˚ | sec | 0.65 sec |
Total indexing time for 180˚ (including locking) |
sec | 0.67 sec |
Indexing a cycle time (unlocking cycle locking) |
sec | 2.12 sec |
Curvic couplings type | Piece | 3 Piece type |
Servo motor type | HF-SP52JK | |
Solenoid operated valve | AC 110, DC 24V | |
Proximity switch | X2 F1 | |
Hydraulic working pressure | kgf/cm² | (35 ~ 40) 35 kgf/cm² |
Thrusting force of hyd. cyl. | kgf | 2600 kgf |
Accuracy of repeatability | mm | 0.003 mm |
N.W. (without tool disc) | kg | 88 kg |
※ Specifications, dimensions, appearance and color are subject to change without prior notice.
