TOOL MAGAZINE
Vertical & Horizontal Series
HYHL-(40#) HYHL-(50#)
Specifications
| Model | HYHL-(40#) | HYHL-(50#) |
| Max. tool dia. (w/adjacent tool) | Ø 90 | Ø 125 |
|---|---|---|
| Max. tool dia. (no adjacent tool) | Ø 185 | Ø 250 |
| Max. tool length | 350 mm | 350 mm |
| Max. tool weight | 8 kg | 25 kg |
| Tool loading capacity | 40T / 60T / 90T / 120T | |
| Tool specifications | BT40 / CAT40 / DIN40 / HSK63 | BT50 / CAT50 / DIN50 / HSK100 |
| Magazine rotation power | Hydraulic / Electirc / Servo motor | Hydraulic / Electirc / Servo motor |
| Tool arm power | Hydraulic | Hydraulic |
The tool arm is equipped with corrosion-resistant and dust-proof device, making tool change accurate.
The air blast device for tool pocket makes tool pocket clean and chip-free, which improves stability in tool change.
The positioning lead screw is equipped with a safety guard for operational safety.
The positioning lead screw is equipped with a safety guard for operational safety.
The earlier unlocking device contributes to upgrade tool change performance.
Servo drive provides quick transmission and high positioning accuracy.

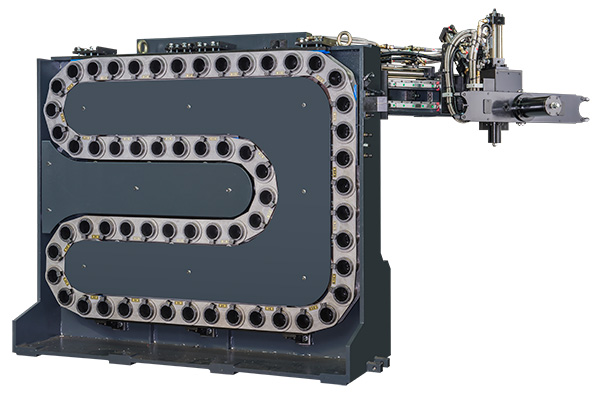

Horizontal tool magazine.
Horizontal tool magazine.
