Core Technology Deep Dive: Near-Zero Backlash Roller Cam Mechanism

1.The Perfect Convergence of Geometry and Mechanics

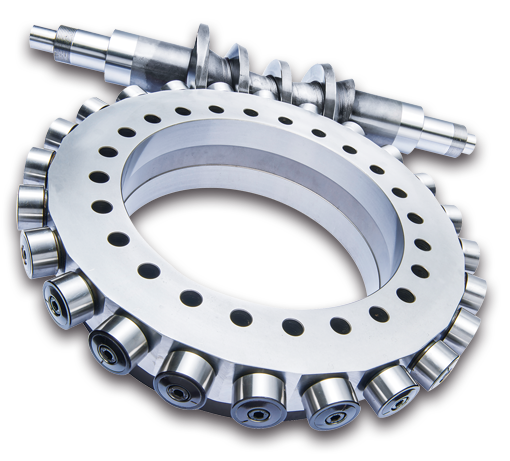

At the heart of our system lies the seamless integration of a high-precision input cam shaft and a robust roller turret assembly. Far beyond mere component assembly, this is a meticulously engineered power transmission hub, ensuring absolute precision in every indexing and rotational movement.

2. Revolutionary Rolling Contact Design

Traditional gear drives inevitably suffer from wear and thermal deformation. By employing a pure "rolling contact" mechanism between the rollers and the cam, we drastically reduce the friction coefficient. This breakthrough innovation not only delivers ultimate high rigidity and high-speed performance, but also ensures exceptional durability for long-term, continuous operation under the most demanding conditions.

3. Precision Preloading: The Final Step to Ultra-Precision

In our relentless pursuit of absolute positioning accuracy, we have integrated a sophisticated preloading technique during the cam and roller meshing process. By proactively eliminating all mechanical backlash, we achieve a pristine "near-zero backlash" state. This guarantees uncompromising, ultra-precision performance, even under the complex stress of high-speed, multi-directional operations.

4. High-Efficiency Kinematics

Thanks to the exceptionally low-friction rolling transmission, thermal and kinetic energy losses during actuation are minimized. This empowers our roller cam system to achieve an astounding transmission efficiency of over 90%. It stands not only as a monumental leap in performance but also as a definitive realization of optimized energy utilization.

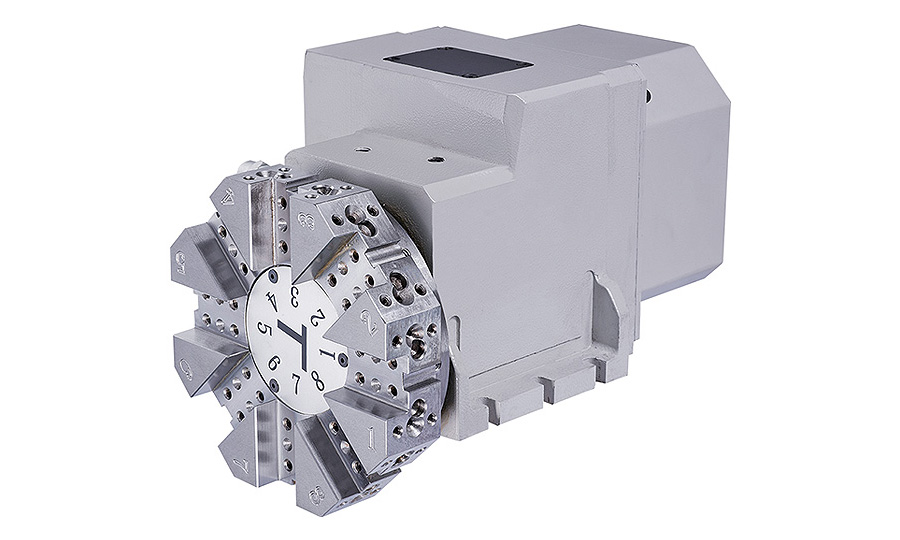

Roller Gear Cam Rotary Table: Redefining Absolute Motion Precision

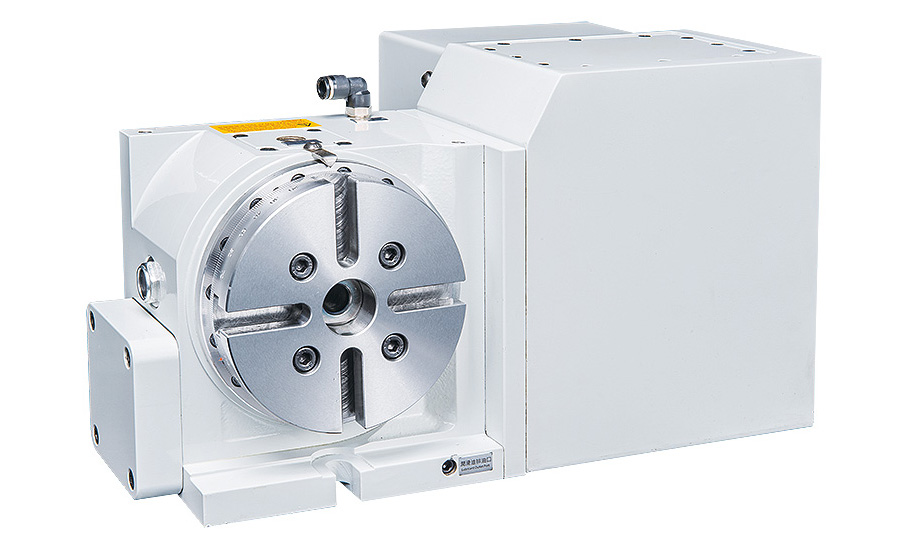

In the evolution of precision machining, every technological leap is a pursuit of purer "control." The HYDEX AR Series transcends the limitations of traditional friction and wear by utilizing revolutionary Roller Gear Cam technology, evolving rotary motion from "sliding" to "rolling." This is more than a performance upgrade; it is an artistic expression of uncompromising precision.

High Efficiency

Rolling transmission dramatically reduces energy loss, granting the machinery agile, cat-like responsiveness.

Thermal Stability

Extremely low friction coefficients suppress thermal deformation, ensuring stable machining precision even during long-term operation.

Timeless Precision

High-hardness carburized steel construction reduces wear to near zero, breaking the industrial destiny of "precision decay over time."

Five-Axis Rotary Table: Mastering the Zenith of Multi-Dimensional Precision

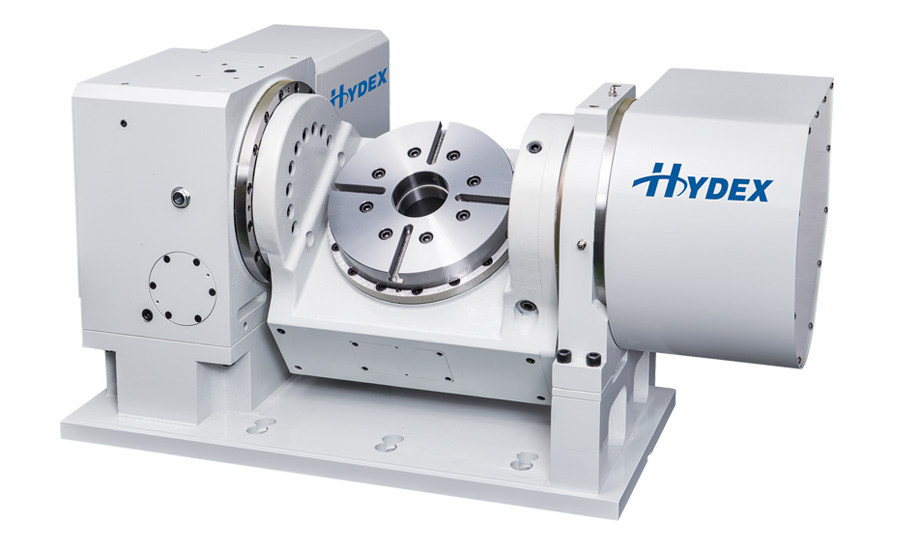

In the dimension of modern machining, the competition for efficiency and precision has shifted from planes to spatial volumes. The HYDEX ATK Series Five-Axis Rotary Table is engineered for high-difficulty processes in aerospace, medical, and complex mold industries. Through seamless tilting and rotating synchronization, it allows you to conquer the most demanding geometric boundaries in a single setup.

Single-Setup Strategy

Drastically reduce changeover frequency and eliminate cumulative errors from multiple setups, ensuring absolute geometric precision.

Superior Tilting Torque & Clamping

Equipped with powerful tilting torque and high-rigidity braking systems, the ATK series demonstrates unyielding stability even under heavy-duty cutting environments.

High Resolution & Near-Zero Backlash

Inheriting the precision DNA of the AR series, it provides ultra-fine positioning resolution during multi-axis linkage, blocking errors at their source.

Wide Tilting Range for Flexibility

The optimized structural design offers a wider tilting range, allowing cutting tools to reach every detail of the workpiece at the optimal angle.

Swiveling Spindle Heas Set: Empowering Large-Scale Machining with Multi-Dimensional Soul

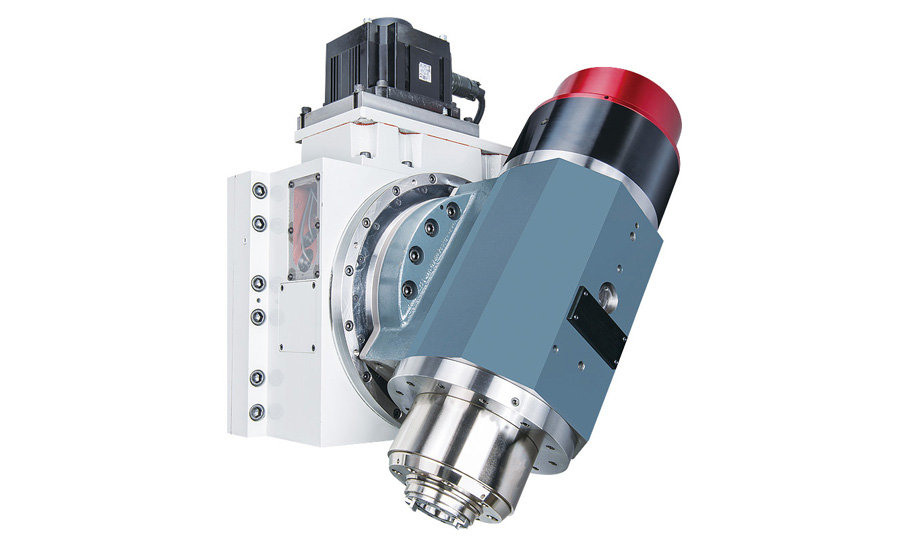

In the realm of large-scale and complex part machining, balancing flexibility and rigidity is often a challenge. The HYDEX AH Series Swiveing Spindle Heas Set breaks spatial constraints through advanced Roller Gear Cam drive technology. More than just a spindle extension, it is the vital core that empowers machines with 5-axis simultaneous capabilities, ensuring unyielding cutting stability at any tilt angle.

The Aesthetics of Near-Zero Backlash

The AH series utilizes industry-leading Roller Gear Cam mechanisms to achieve near-zero-backlash transmission. This ensures the swing head responds instantaneously to commands during high-precision contoured machining, eliminating reversal errors.

Ultimate Clamping Torque: Guardian of Heavy-Duty Cutting

Engineered for heavy-duty machining, the AH series features a powerful brake clamping system. Even during high-material-removal-rate roughing, the spindle head maintains exceptional positional rigidity.

High-Precision Positioning & Thermal Stability

Optimized internal cooling and low-friction design effectively reduce thermal displacement during high-speed rotation. Paired with high-resolution encoders, it delivers second-level repeatability.

Compact & Robust Design: Maximizing Workspace

The streamlined and compact body design significantly reduces the risk of collision with workpieces or fixtures, allowing tools to reach complex parts at deeper and more flexible angles.
